The Kunsthalle Mannheim has shaped cultural life in the industrial city on the Rhine for over 100 years. With its outstanding works ranging from Edouard Manet to Francis Bacon, and a unique focus on sculpture, it is considered one of the most renowned collections of modern and contemporary art in Germany.

The Kunsthalle Mannheim complex comprises the Billing building, the Athena wing (both built 1907) and the Mitzlaff building (1983). In recent years, however, the buildings’ deficiencies were becoming increasingly apparent, raising the fear that the Kunsthalle’s high standards could no longer be met in future. This prompted Mannheim City Council’s decision in 2007 to carry out a multi-stage general refurbishment of the buildings. The Council Order from 2009 provided the start signal for refurbishing the Billing building. The refurbishment project was subsequently planned as an EnSan model project with a high energy efficiency requirement and scientific evaluation.

From 2009 to the beginning of 2013, the Art Nouveau-style Billing building was refurbished while the museum’s operations continued in the neighbouring Mitzlaff building. As part of the renovation of the Billing building it was intended to restore the historical exhibition spaces. This included reactivating the historical daylight ceilings, expanding the exhibition space and installing technical equipment corresponding to international standards so that high-profile exhibitions can also be held in future.

Research focus

Most museum buildings have either insufficient thermal insulation or none at all. By means of extensive building technology and high energy utilisation, the attempt is nevertheless made to achieve the necessary thermal and visual comfort and conservation requirements. Heating and ventilation systems that seem oversized by today's standards are often incapable of adapting to an increasingly variable use of space as a result of their control technology. Poorly planned daylight utilisation and extensive use of artificial lighting create high cooling requirements. Such building deficiencies not only entail high energy costs, recent findings show that they also take their toll on artworks and users through asymmetries in the heat radiation, excessive temperature gradients and too much UV light in the daylight available.

At the same time there has been very little experience in increasing the energy efficiency of museums, especially in regards to listed buildings. This project intends to dispel any reservations about carrying out energy-efficient refurbishment and also demonstrate the costs and energy savings that can be achieved.

On behalf of the City of Mannheim, the Fraunhofer Institute for Building Physics and the Institute of Building Services and Energy Design at TU Braunschweig conducted an energy efficiency-based building and system analysis of the Billing building and drew up an energy concept taking into account the listed building requirements. The aim was to drastically reduce the building’s energy consumption while not changing its character, architecture and possibilities for use. In addition, the intention was to increase the thermal comfort by increasing the surface temperatures of the building elements.

The project intends to show that museum buildings, which require considerable energy as a result of their indoor environment requirements, can also be brought up to an energy standard that undercuts the requirements of the 2007 German Energy Saving Ordinance (EnEV) by 30% and yet still meet specialist conservation requirements. At the same time many innovative materials will be installed during the project and undergo ongoing monitoring and measurement. These include vacuum insulation (VIP), LED lighting and special materials for interior insulation. The scientific monitoring is being conducted over a period of two years.

Refurbishment concept

The Billing building, which was constructed in 1907, was designed by the Karlsruhe architect Hermann Billing (1867 – 1946). This building houses exhibition spaces, a library, workshops, restoration and bookbinding services, offices and storage rooms across a net floor area of 3,797 square metres.

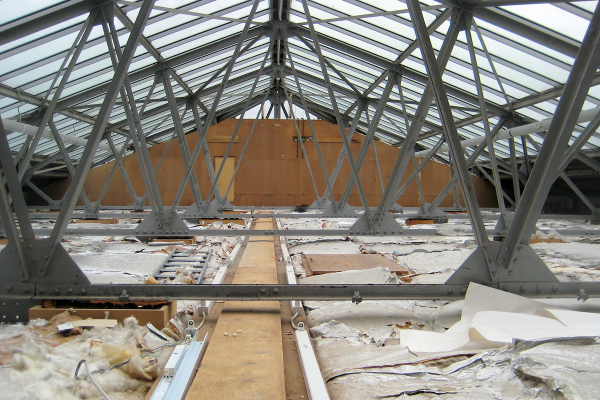

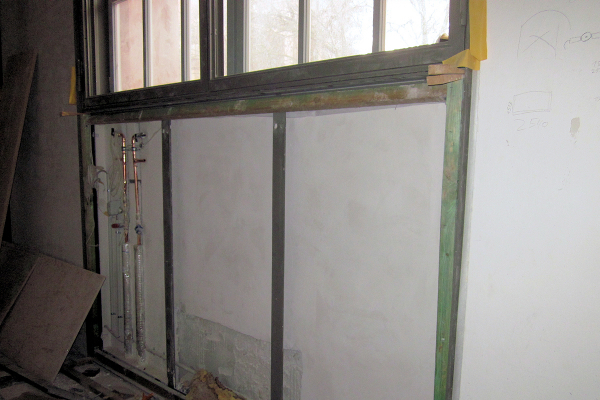

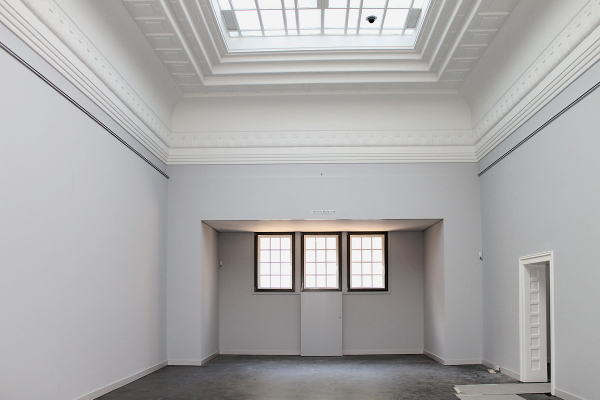

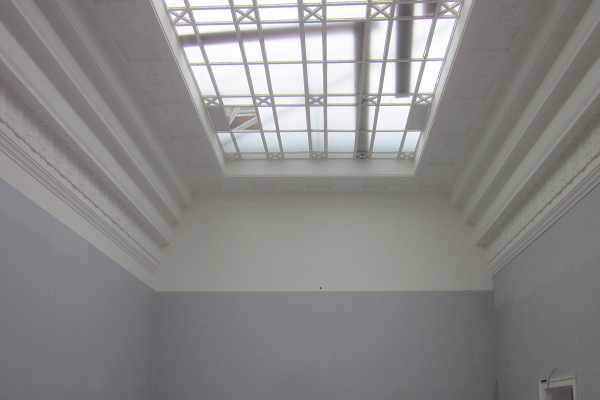

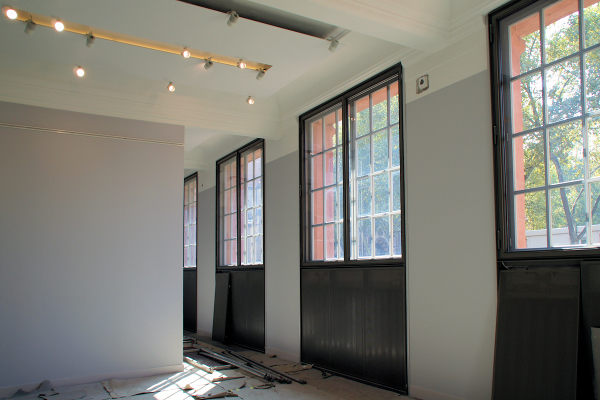

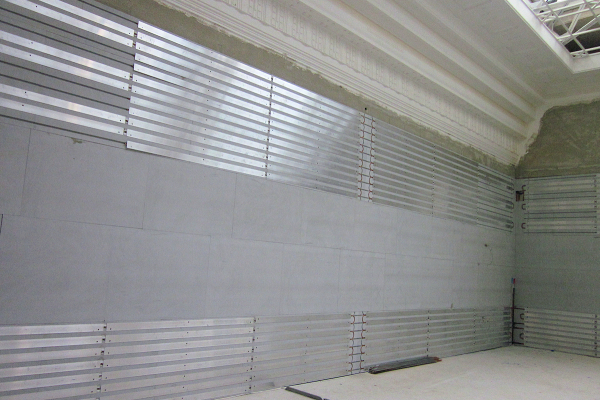

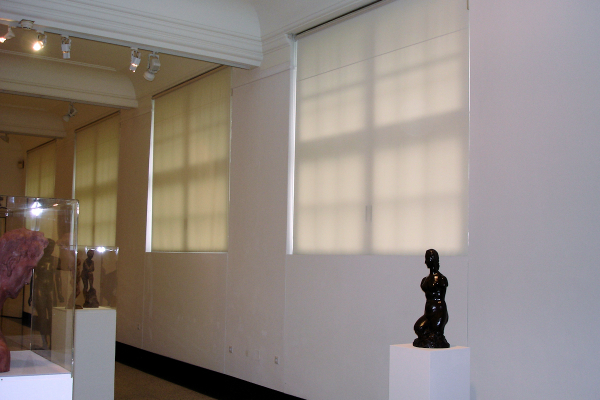

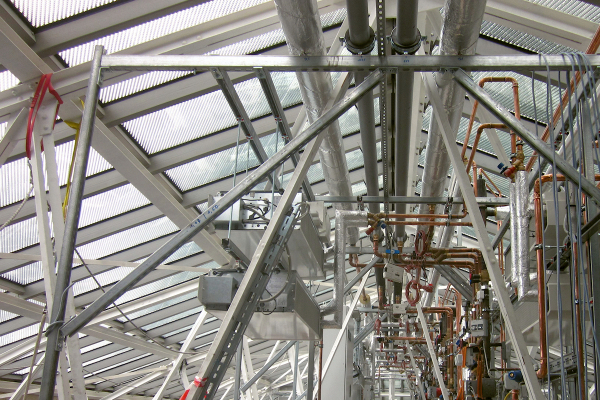

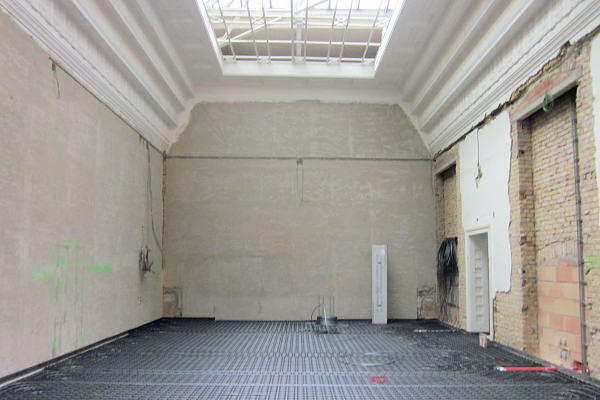

Numerous individual measures for the building envelope were planned to reduce energy consumption and stabilise the indoor environment. An improvement in the U-value of the exterior walls and earth-facing walls was achieved by providing interior thermal insulation with calcium silicate boards. The insulation level in the window area is continued in the form of a second inner window level consisting of thermally separated aluminium frames and double-glazed insulating glass units. The original situation with daylight supplied to the exhibition spaces through the roof will be restored by removing the opaque wood cladding above the glass ceiling and integrating high quality, insulating glass units at roof level. The earth-facing foundation slab is being insulated with conventional thermal insulation. Particularly the windows are complex components, which in museums not only provide light but also considerably influence the indoor environment, the conservation of objects and the possibilities for utilising daylight.
